PCD Diamond Tooling
Polycrystalline Diamond (PCD) is a synthetic material manufactured by fusing together small diamond particles under extreme heat and pressure. The process creates a very hard, wear-resistant material, ideal for cutting tools.

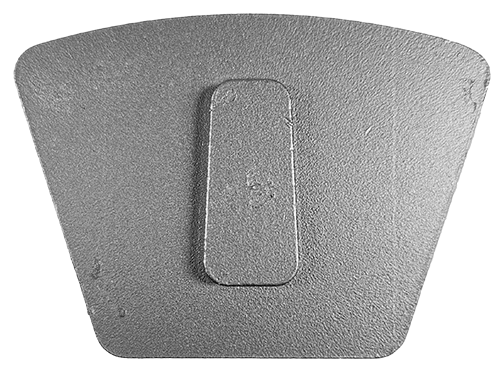

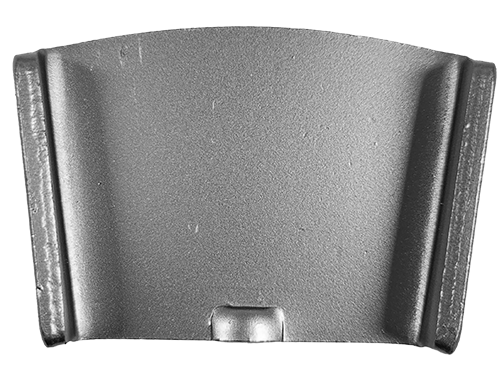

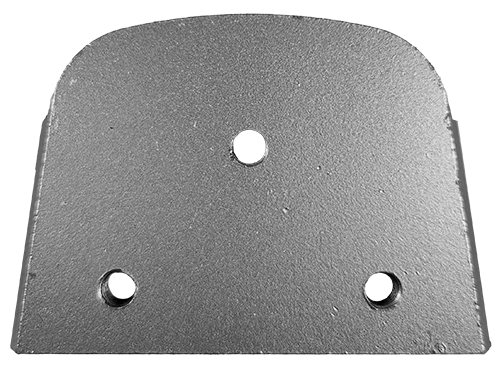

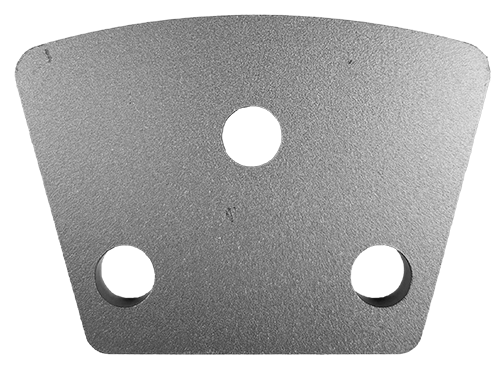

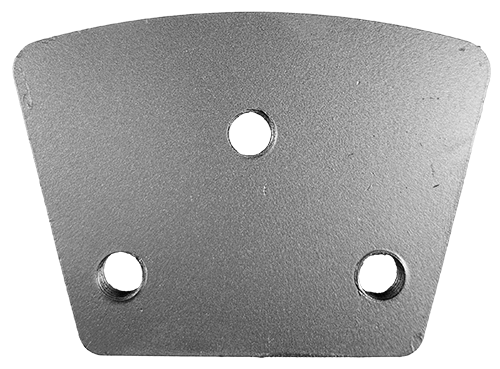

Five Design Formats
5 design formats for use on a wide range of grinders:
Explore our line of PCD Diamond Tooling
SPLIT PCDs
Engineered for aggressive coating and adhesive removal, this metal-bond tool is made with two PCD (Polycrystalline Diamond) segments. The PCD bars deliver fast, efficient cutting action, making quick work of epoxy, mastic, glue, paint, and other stubborn surface coatings. The durable metal-bond matrix holds each PCD securely, ensuring consistent results even under demanding conditions.
Key Features:
- Works on concrete, terrazzo, and other hard surfaces
- Available in single-bar or double-bar PCD configurations
- Extremely efficient coating, adhesive, and paint removal
- Long lifespan with minimal tool wear
Double-Bar PCDs provide aggressive performance and long life for heavy-duty coating removal and larger surface areas.
|
Format |
DOUBLE SEGMENT |
|---|---|
|
A – M6 |
VCX.200997M6 |
|
A – M8 |
VCX.200997M8 |
|
B |
VCX.200997C |
|
C |
VCX.200997L |
|
D |
VCX.200997HQ |
|
E |
VCX.200997H |
5x PCD with wear bar
This premium metal-bond tool features five triangular PCD (Polycrystalline Diamond) segments designed for aggressive coating removal and surface preparation. The triangular shape deliver fast, efficient removal of epoxy, glue, mastic, paint, and other tough coatings without excessive surface damage.
A built-in wear bar is included to protect the tool body and ensure even performance as the PCD segments wear down. The wear bar helps maintain balance, extends tool life, and provides a visual indicator for replacement.
Our 5x PCD Tooling Is Directional
VeloCutX 5x PCD tooling is engineered with angled cutting edges that are designed to bite into coatings as the grinder head rotates. Because of this geometry, PCD tools are directional—they must match the rotation of your grinder’s head.
Matching the PCD tool to your grinder’s rotation ensures the cutting edges make contact exactly as intended—delivering aggressive removal, smoother operation, and maximum tool life. If a PCD tool is installed in the wrong direction, the cutting edge won’t engage the coating properly. Instead of removing material efficiently, the tool may just skim or chatter across the surface. This can cause premature wear, reduced performance, or even damage to the tool.
|
Format |
RIGHT |
LEFT |
|---|---|---|
|
A – M6 |
VCX.200510M6 |
VCX.200511M6 |
|
A – M8 |
VCX.200510M8 |
VCX.200511M8 |
|
B |
VCX.200510C |
VCX.200511C |
|
C |
VCX.200510L |
VCX.200511L |
|
D |
VCX.200510HQ |
VCX.200511HQ |
|
E |
VCX.200510H |
VCX.200511H |
Key Features:
- Directional geometry
- 5 triangular PCD segments for maximum cutting efficiency
- Durable metal-bond design for extended use
- Integrated wear bar for longer lifespan and tool protection
- Ideal for removing thick coatings, adhesives, and surface build-up
More about PCD’s
Definition
PCD (Polycrystalline Diamond) tooling is designed for high-performance coating removal and aggressive surface preparation. Unlike conventional diamond tooling, PCD tools use a synthetic diamond material that is extremely hard and wear-resistant. This allows them to quickly strip away tough surface coatings without overheating or glazing.
How It Works
PCD is created by fusing many tiny diamond particles under extreme heat and pressure, forming a solid diamond segment. These segments are highly resistant to wear, making PCD tooling ideal for removing thick, stubborn coatings while leaving the underlying surface relatively intact.
Standard Applications
- Coating removal – stripping epoxy, urethane, paint, and other heavy coatings
- Glue and mastic removal – removing adhesives from concrete floors
- Thick build-up removal – tackling layers of waterproofing, elastomeric coatings, or membrane systems
- Surface preparation – creating the right profile before grinding or polishing
Key Advantages
- Extremely aggressive removal capability
- Long lifespan, even on abrasive surfaces
- Prevents excessive surface damage when used correctly
- Works on a variety of coatings and adhesives without clogging
Where They Excel
PCD diamond tools are the first choice for contractors facing heavy-duty removal jobs. They excel when speed and efficiency are top priorities, especially in large-scale industrial, commercial, or renovation projects.
